ProcessLauncherInterface Class Reference

Functions for all process launchers. More...

#include <process_launcher.h>

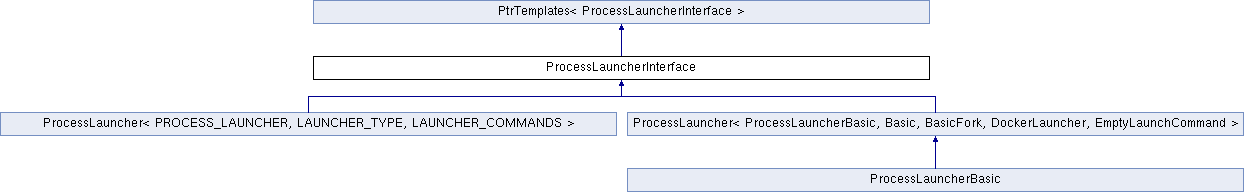

Inheritance diagram for ProcessLauncherInterface:

Public Types
using	ENGINE_RUNNING_STATUS = LaunchCommandInterface::ENGINE_RUNNING_STATUS
Public Types inherited from PtrTemplates< ProcessLauncherInterface >
using	shared_ptr = std::shared_ptr< ProcessLauncherInterface >
using	const_shared_ptr = std::shared_ptr< const ProcessLauncherInterface >
using	unique_ptr = std::unique_ptr< ProcessLauncherInterface >
using	const_unique_ptr = std::unique_ptr< const ProcessLauncherInterface >

Public Member Functions
virtual	~ProcessLauncherInterface ()=default
virtual std::string	launcherName () const =0
	Get name of launcher. More...
virtual ProcessLauncherInterface::unique_ptr	createLauncher (int logFD=-1)=0
	Create a new process launcher. More...
virtual pid_t	launchProcess (nlohmann::json procConfig, bool appendParentEnv=true)=0
	Fork a new process. Will read environment variables and start params from procConfig. More...
virtual pid_t	stopProcess (unsigned int killWait)=0
	Stop a running process. More...
virtual ENGINE_RUNNING_STATUS	getProcessStatus ()
	Get the current process status. If status cannot be retrieved, return ENGINE_RUNNING_STATUS::UNKNOWN. More...
LaunchCommandInterface *	launchCommand () const
	Get Launch Command. If launchProcess has not yet been called, return nullptr. More...
void	setFileDescriptor (int logFD)
	Sets the file descriptor that will be used by the launched process to write stdout and stderror. More...

Static Public Attributes
static constexpr auto	UNKNOWN = LaunchCommandInterface::ENGINE_RUNNING_STATUS::UNKNOWN
static constexpr auto	RUNNING = LaunchCommandInterface::ENGINE_RUNNING_STATUS::RUNNING
static constexpr auto	STOPPED = LaunchCommandInterface::ENGINE_RUNNING_STATUS::STOPPED

Static Protected Member Functions
static bool	checkEnvVar (const std::string &envVar)
	Checks given Environment variable for correctness (Should contain an '=' character) More...
static std::tuple< std::string, std::string >	splitEnvVar (const std::string &envVar)
	Split Environment variable string into variable name and value. More...

Protected Attributes
LaunchCommandInterface::unique_ptr	_launchCmd = nullptr
	Launch Command. More...
int	_logFD = -1
	File descriptor to route stdout and stderror outputs in launched process. More...

Detailed Description

Functions for all process launchers.

Member Typedef Documentation

ENGINE_RUNNING_STATUS

using ProcessLauncherInterface::ENGINE_RUNNING_STATUS = LaunchCommandInterface::ENGINE_RUNNING_STATUS

Constructor & Destructor Documentation

~ProcessLauncherInterface()

virtual ProcessLauncherInterface::~ProcessLauncherInterface ( )

virtualdefault

Member Function Documentation

checkEnvVar()

bool ProcessLauncherInterface::checkEnvVar ( const std::string &  envVar )

staticprotected

Checks given Environment variable for correctness (Should contain an '=' character)

Parameters

envVar

Variable to check

Returns

Returns true if valid, false otherwise

createLauncher()

virtual ProcessLauncherInterface::unique_ptr ProcessLauncherInterface::createLauncher ( int  logFD = -1 )

pure virtual

Create a new process launcher.

Parameters

logFD

File descriptor to route stdout and stderror outputs in launched process

Implemented in ProcessLauncher< PROCESS_LAUNCHER, LAUNCHER_TYPE, LAUNCHER_COMMANDS >, and ProcessLauncher< ProcessLauncherBasic, Basic, BasicFork, DockerLauncher, EmptyLaunchCommand >.

getProcessStatus()

virtual ENGINE_RUNNING_STATUS ProcessLauncherInterface::getProcessStatus ( )

inlinevirtual

Get the current process status. If status cannot be retrieved, return ENGINE_RUNNING_STATUS::UNKNOWN.

Returns

Returns status as enum ProcessLauncherInterface::ENGINE_RUNNING_STATUS

launchCommand()

LaunchCommandInterface * ProcessLauncherInterface::launchCommand

(

)

const

Get Launch Command. If launchProcess has not yet been called, return nullptr.

launcherName()

virtual std::string ProcessLauncherInterface::launcherName ( ) const

pure virtual

Get name of launcher.

Implemented in ProcessLauncher< PROCESS_LAUNCHER, LAUNCHER_TYPE, LAUNCHER_COMMANDS >.

launchProcess()

virtual pid_t ProcessLauncherInterface::launchProcess ( nlohmann::json  procConfig, bool  appendParentEnv = true  )

pure virtual

Fork a new process. Will read environment variables and start params from procConfig.

Parameters

procConfig	Process Configuration. Env variables and start params take precedence over envParams and startParams
appendParentEnv	Should parent env variables be appended to child process

Returns

Returns Process ID of child process on success

Implemented in ProcessLauncher< PROCESS_LAUNCHER, LAUNCHER_TYPE, LAUNCHER_COMMANDS >, and ProcessLauncher< ProcessLauncherBasic, Basic, BasicFork, DockerLauncher, EmptyLaunchCommand >.

setFileDescriptor()

void ProcessLauncherInterface::setFileDescriptor

(

int

logFD

)

Sets the file descriptor that will be used by the launched process to write stdout and stderror.

Parameters

logFD

File descriptor to route stdout and stderror outputs in launched process

splitEnvVar()

std::tuple< std::string, std::string > ProcessLauncherInterface::splitEnvVar ( const std::string &  envVar )

staticprotected

Split Environment variable string into variable name and value.

Parameters

envVar

String to split. Should have the form <VAR_NAME>=<VAR_VALUE>

Returns

Returns tuple. First value is VAR_NAME, second one is VAR_VALUE. If envVar has an invalid form, returns an empty string for both values

stopProcess()

virtual pid_t ProcessLauncherInterface::stopProcess ( unsigned int  killWait )

pure virtual

Stop a running process.

Parameters

killWait

Time (in seconds) to wait for process to quit by itself before force killing it. 0 means it will wait indefinitely

Returns

Returns child PID on success, negative value on error

Implemented in ProcessLauncher< PROCESS_LAUNCHER, LAUNCHER_TYPE, LAUNCHER_COMMANDS >, and ProcessLauncher< ProcessLauncherBasic, Basic, BasicFork, DockerLauncher, EmptyLaunchCommand >.

Member Data Documentation

_launchCmd

LaunchCommandInterface::unique_ptr ProcessLauncherInterface::_launchCmd = nullptr

protected

Launch Command.

_logFD

int ProcessLauncherInterface::_logFD = -1

protected

File descriptor to route stdout and stderror outputs in launched process.

RUNNING

constexpr auto ProcessLauncherInterface::RUNNING = LaunchCommandInterface::ENGINE_RUNNING_STATUS::RUNNING

staticconstexpr

STOPPED

constexpr auto ProcessLauncherInterface::STOPPED = LaunchCommandInterface::ENGINE_RUNNING_STATUS::STOPPED

staticconstexpr

UNKNOWN

constexpr auto ProcessLauncherInterface::UNKNOWN = LaunchCommandInterface::ENGINE_RUNNING_STATUS::UNKNOWN

staticconstexpr

---

The documentation for this class was generated from the following files:

• nrp_general_library/nrp_general_library/process_launchers/process_launcher.h
• nrp_general_library/nrp_general_library/process_launchers/process_launcher.cpp
